## What is a K-Map and what is it used for ?

A Karnaugh map, also known as a K-Map, is a graphical representation of a truth table that simplifies Boolean algebra expressions. It is a tool used in digital electronics and computer science for optimizing logical functions to reduce the number of gates or circuits required to implement a logic function.

A K-Map is a table with binary values that are used to represent all possible input combinations for a given Boolean function. The table is arranged in a particular way so that adjacent cells have only one variable changing between them. This layout allows the identification of groups of adjacent cells with the same output value, which can be used to simplify and optimize the Boolean function.

The resulting simplified expression is then obtained by combining terms and eliminating any redundant variables. In this way, K-Maps can help to minimize the number of logic gates needed to implement the Boolean function, leading to a more efficient and cost-effective circuit design.

## Types of K-Maps

There are two main types of Karnaugh maps (K-Maps), the two-dimensional map and the three-dimensional map.

**Two-dimensional K-Map**: This is the most commonly used K-Map, which uses a two-dimensional grid of cells arranged in columns and rows. Each row represents a combination of inputs, and each column represents one variable of the input. To form the groups on this type of map, cells can be grouped in rectangular shapes and can overlap each other.**Three-dimensional K-Map**: This type of K-Map is used for optimizing Boolean functions with five or more variables. It adds an additional dimension to the grid, with the cells now arranged in a cube shape. Each level of the cube represents the combination of two input variables, while the third variable is represented by the position of the cells inside the cube. This type of K-Map is not widely used in practice, however.

Both types of K-Maps have the same purpose, which is to simplify and optimize Boolean algebra expressions. They are effective in reducing the number of logic gates required to implement a logic function and improving circuit design efficiency. They are widely used in digital electronics and computer science for optimizing digital circuits, especially in the design of combinational logic circuits.

## What are don't care conditions ?

Don't care conditions can arise in various situations such as in the design of combinational circuits, synthesis of logic circuits, and simplification of Boolean functions. They are denoted with an "X" in the truth table instead of 0 or 1.

The use of don't care conditions can lead to a more efficient and simplified circuit design by reducing the number of gates, minimizing hardware, and optimizing the circuit's performance. In Boolean algebra, we can use don't care conditions to further reduce the number of terms in minterm or maxterm expansions of a Boolean function.

Don't care conditions can occur when there is some redundancy in the logic function and the designer wants to simplify the circuit implementation. They can also occur when we are dealing with circuit inputs whose value will never occur in the actual operation of the circuit. In such cases, designers can take advantage of these don't care conditions to minimize circuit area, reduce delay, reduce power consumption, or improve other performance metrics such as speed or reliability.

## Example

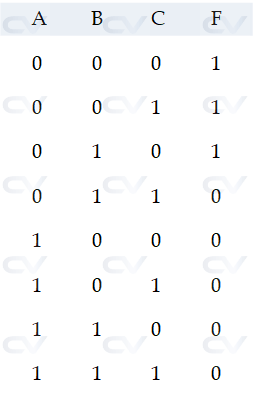

Let's say we want to create a Boolean function based on the following truth table:

We can use a Karnaugh map (K-map) to simplify the Boolean expression. A K-map is a graphical representation of a truth table that provides an efficient method for simplifying Boolean functions. Here's how to create the K-map:

- Draw a 2x4 grid and label the columns with the values of BC, and the rows with the value of A.
- Write the values of F in the corresponding cells of the grid.
- Group the adjacent cells that contain the value 1. Each group should contain only 1's and should be as large as possible.
- Write SOP for each group but omit the variable that changes value. This will give you the simplified Boolean expression.

F = A'C' + A'B'

This is a simplified version of the original Boolean function that we derived using the K-map. We can implement this Boolean function using digital logic gates such as AND, OR, and NOT gates.

The same result can be obtained by Boolean operations.

F = A'B'C' + A'B'C + A'BC' F = A'(B' + C') + A'BC' F = A'(B' + C' + BC') F = A'(B' + C' (1 + B)) F = A'(B' + C') F = A'B' + A'C'
